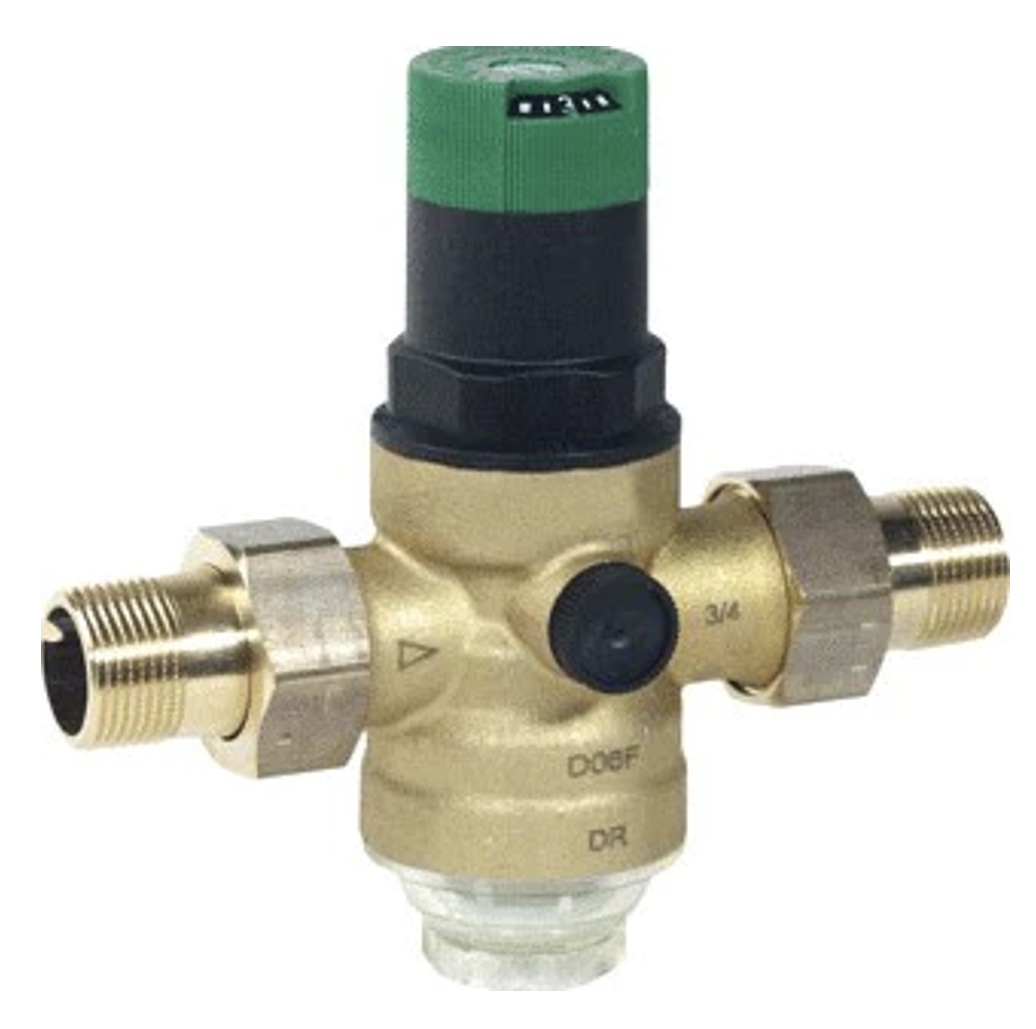

A water pressure regulator reduces the main water pressure to a safe level for the plumbing system, typically 40 to 60 pounds per square inch (psi). Without it, high incoming pressure can lead to problems like pipe vibration, water hammer and continuously running toilets.
Why Maintaining Proper Water Pressure Is Important
Most residential plumbing systems are designed to operate at approximately 3.5 bar (50 psi). However, municipal water supplies often deliver pressure as high as 10.3 to 14 bar (150 to 200 psi). Prolonged exposure to such high pressure can cause many issues, such as:
- Appliance damage: High pressure is a leading cause of early failure in appliances such as washing machines, dishwashers and toilets. It stresses internal components, causing leaks and wear over time.
- Water hammer: When water flow is suddenly halted, like when a faucet shuts off, high pressure generates a shock wave inside the pipe, which is known as water hammer. This causes pipes to bang against walls or joists, producing loud noises and increasing the risk of joint damage or pinhole leaks.
- Leaks and loose connections: Prolonged high pressure stresses pipe joints, fittings and valves, accelerating wear. This often results in leaking faucets, deteriorated shower valves and failing toilet fill valves.
- Higher water bills: Increased pressure means more water flows through fixtures in the same amount of time. A typical shower may use 20 gallons, but with high pressure, that amount can nearly double, resulting in wasted water and increased costs.
Where Is a Water Pressure Regulator Installed?
To check if a home has a water pressure regulator, locate the point where the main water line enters the building. The regulator is typically installed immediately after the main shut-off valve. If the shut-off valve is not visible at the entry point, inspect areas like the basement, garage or crawl space. A home inspection report may also indicate the location of the valve. Once it is found, examine the pipe just downstream of the shut-off valve.
Design & Operation

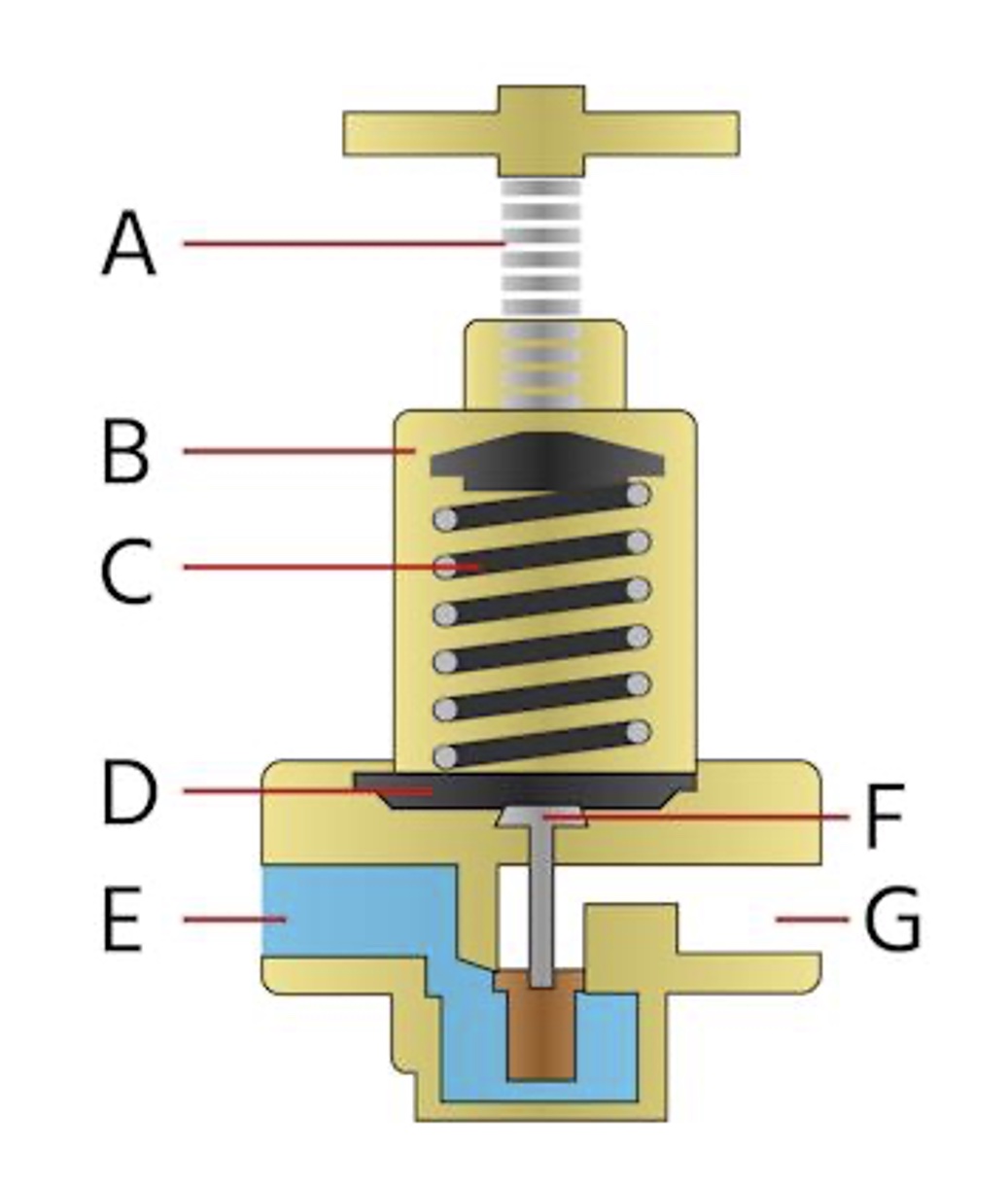

A typical water pressure regulator design has the following key parts:
- Adjustment screw: The adjustment screw is used to set the outlet pressure manually. Turning the screw changes how much the internal spring gets compressed.
- Body: The main housing, typically made of brass or stainless steel, contains all functional components and is built to withstand corrosion and mechanical stress.
- Adjusting spring: The spring pushes against the diaphragm. The screw adjusts how much the spring is compressed, which controls the outlet pressure.
- Diaphragm: The diaphragm is a flexible rubber or elastomer membrane that moves with changes in water pressure. It balances the force of the spring against the incoming water pressure to regulate flow.
- Inlet and outlet ports: Water enters the regulator through the inlet port and exits through the outlet.
- Valve seat: The valve seat opens or closes to control the flow of water. It is located below the diaphragm and, when closed, forms a tight seal to stop the flow completely.
Operating Principle
The operation of a water pressure regulator is based on balancing internal mechanical forces with changes in incoming water pressure. Here is how the regulator works:
- Inlet pressure: Water enters the pressure regulator through the inlet port.
- Diaphragm and valve action: The water pushes against a flexible diaphragm connected to the valve and creates pressure.
- Spring tension: A spring pushes on the diaphragm to balance the water pressure.
- Pressure balancing: When the inlet pressure rises, the diaphragm moves down, opening the valve and letting more water through until the pressure stabilizes. When the inlet pressure drops, the spring lifts the diaphragm, closing the valve slightly to keep the pressure steady.
- Outlet pressure control: The regulated water exits through the outlet port at a stable pressure, typically set between 2.8 and 4.1 bar (40 to 60 psi) for household use.
Adjusting a Water Pressure Regulator
Many pressure regulators are typically factory set to deliver between 3.1 bar (45 psi) and 3.8 bar (55 psi). In most cases, the pressure can be regulated within a range of 2.7 to 4.8 bar (40 to 70 psi) to suit specific system requirements.
Water pressure regulators have an adjustment knob. Turning the adjustment screw or knob clockwise compresses the internal spring, increasing the pressure. This allows a higher outlet pressure before the regulator restricts flow. Turning it counterclockwise relaxes the spring and lowers the outlet pressure. Check the water pressure using a pressure gauge to confirm the outlet pressure stays within safe, optimal limits. Some pressure regulator models come with a built-in gauge; otherwise, use an external gauge connected to a nearby hose bib or test port.
Selection Criteria
Selecting the proper water pressure regulator requires careful consideration of system requirements and operating conditions.
- Pressure range: The regulator should be capable of handling the maximum inlet pressure. It should also be capable of adjusting to the required outlet pressure. Residential systems typically reduce an inlet pressure of 10.3 bar (150 psi) to a range of 40 to 60 psi (2.7 to 4.1 bar).
- Size: Select the regulator size to match the pipe diameter and the system’s peak flow rate. Ensure the regulator can operate at the system’s peak flow rate without causing excessive pressure drop or limiting water delivery.
- Material: The regulator should be made of a material that is compatible with water and is able to withstand its pressure and temperature. Common choices are brass (durable and corrosion-resistant), stainless steel (high strength) and plastic (lightweight and cost-effective).
- Certifications: Choose regulators that meet relevant standards (e.g., International Organization for Standardization [ISO] 10522) for safety and legal use in specific applications.
When to Replace
A faulty pressure regulator can affect the entire plumbing system; however, identifying early warning signs can help prevent damage. Common signs of a failing regulator include:
- Unusual pressure changes: Sudden drops or spikes in water pressure often indicate a failing regulator.
- Noisy pipes (water hammer): Irregular pressure can cause banging or vibrating noises in the plumbing.
- Leaking fixtures: Constant drips from faucets or toilets may result from excessively high pressure caused by a malfunctioning regulator.
- Wear and tear: Look for visible signs of wear, corrosion or damage. Any physical deterioration may affect the regulator’s ability to maintain proper water pressure.
